Hybrid Diffusion Policies with Projective Geometric Algebra for Efficient Robot Manipulation Learning

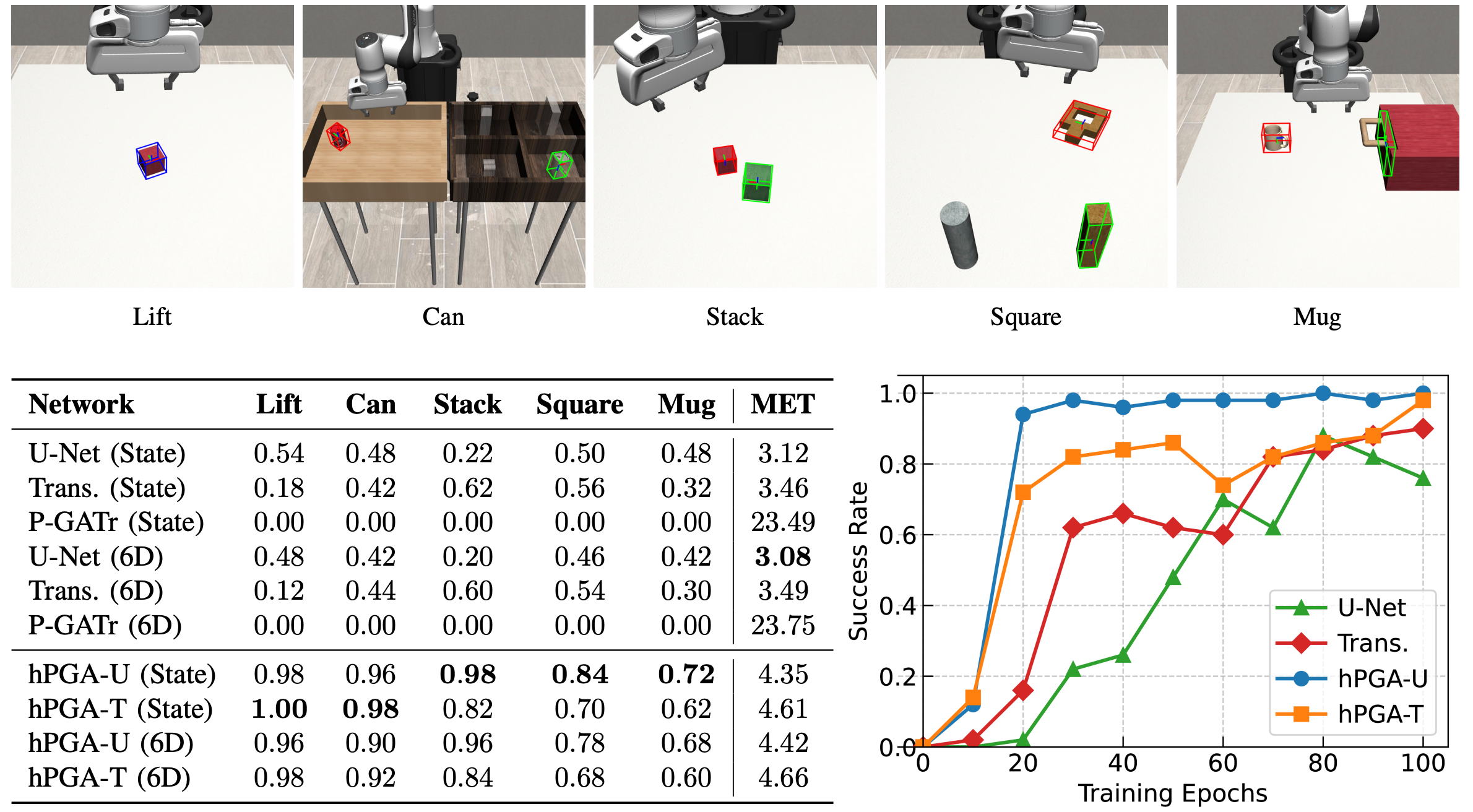

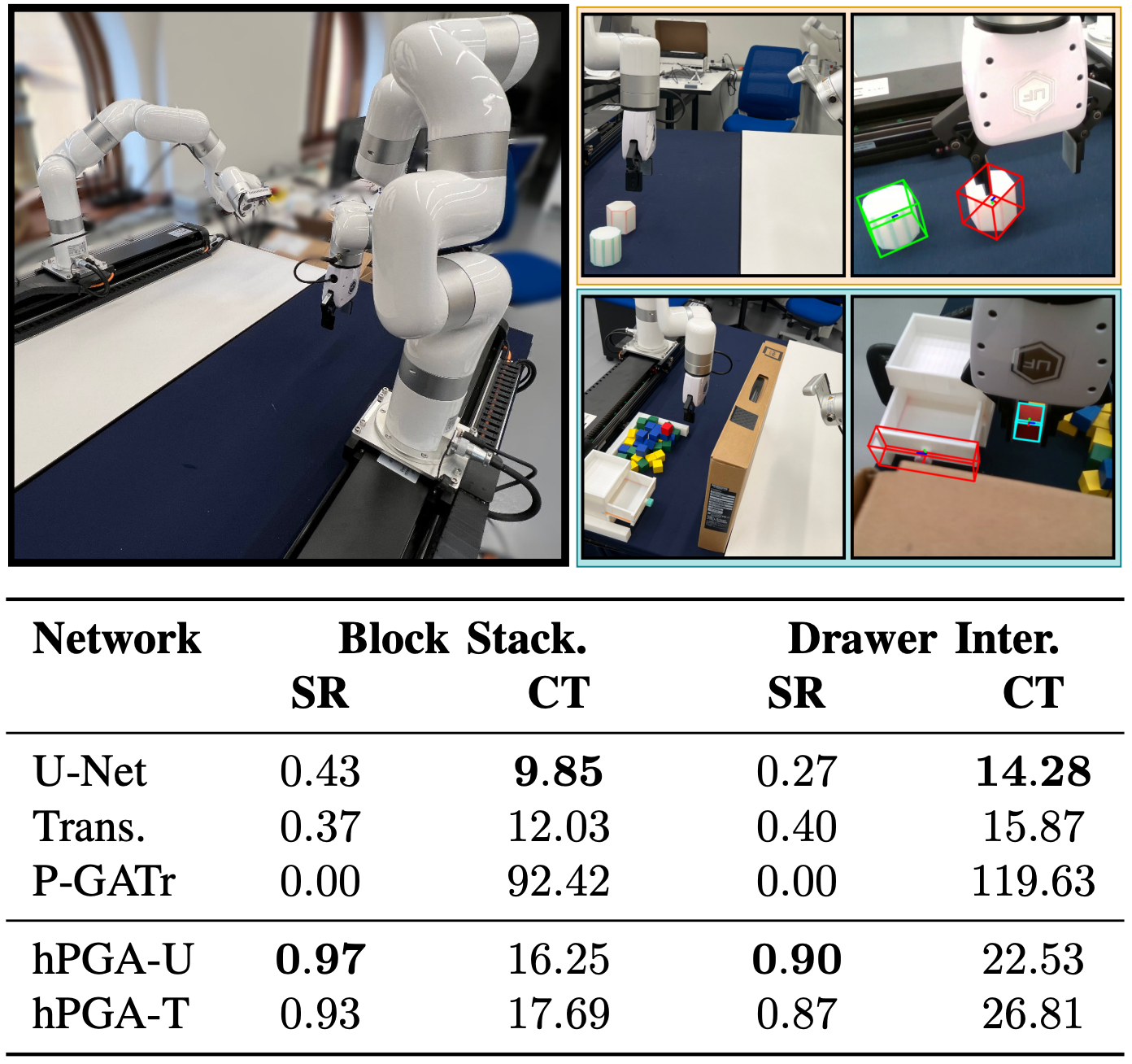

Diffusion policies are a powerful paradigm for robot learning, but their training is often inefficient. A key reason is that networks must relearn fundamental spatial concepts, such as translations and rotations, from scratch for every new task. To alleviate this redundancy, we propose embedding geometric inductive biases directly into the network architecture using Projective Geometric Algebra (PGA). PGA provides a unified algebraic framework for representing geometric primitives and transformations, allowing neural networks to reason about spatial structure more effectively. In this paper, we introduce hPGA-DP, a novel hybrid diffusion policy that capitalizes on these benefits. Our architecture leverages the Projective Geometric Algebra Transformer (P-GATr) as a state encoder and action decoder, while employing established U-Net or Transformer-based modules for the core denoising process. Through extensive experiments and ablation studies in both simulated and real-world environments, we demonstrate that hPGA-DP significantly improves task performance and training efficiency. Notably, our hybrid approach achieves substantially faster convergence compared to both standard diffusion policies and architectures that rely solely on P-GATr.

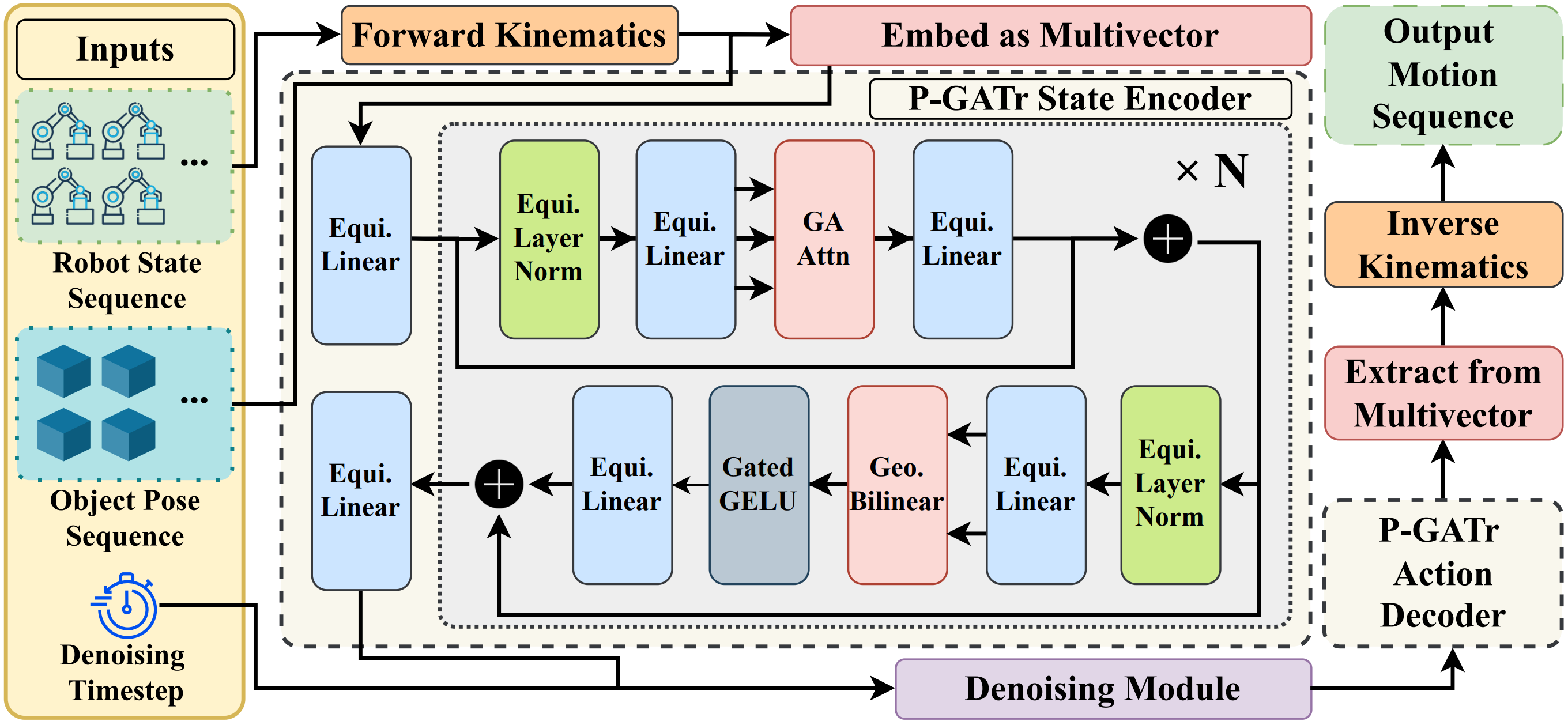

Hybrid backbone: hPGA-DP wraps diffusion with PGA components. A P-GATr state encoder converts observations (robot links + task objects) into multivector latents; a P-GATr action decoder maps denoised latents back to actions. Both preserve geometric structure and E(3)-equivariance.

Geometric inductive bias via PGA: Points, planes, and motions live as multivectors in 𝔾_3,0,1, so Euclidean transforms are native instead of relearned. This encodes spatial relations compactly and consistently across tasks.

Standard denoiser in the middle: Between encoder and decoder, a conventional U-Net or Transformer handles the diffusion denoising steps. This keeps the proven generative power of standard backbones while operating on geometry-informed latents.

Training recipe: Noise is added to action latents; the denoiser predicts it conditioned on encoded observations. The decoder is supervised only on later denoising steps (loss masking with threshold η) so it learns from well-denoised latents instead of pure noise. Total loss combines noise-prediction MSE and a masked decoder reconstruction term.
