Coherence-based Approximate Derivatives via Web of Affine Spaces Optimization

Daniel Rakita, Chen Liang*, Qian Wang*

Yale University

^*Equal Contribution

Abstract

Computing derivatives is a crucial subroutine in computer science and related fields as it provides a local characterization of a function’s steepest directions of ascent or descent. In this work, we recognize that derivatives are often not computed in isolation; conversely, it is quite common to compute a sequence of derivatives, each one somewhat related to the last. Thus, we propose accelerating derivative computation by reusing information from previous, related calculations—a general strategy known as coherence. We introduce the first instantiation of this strategy through a novel approach called the Web of Affine Spaces (WASP) Optimization. This approach provides an accurate approximation of a function’s derivative object (i.e. gradient, Jacobian matrix, etc.) at the current input within a sequence. Each derivative within the sequence only requires a small number of forward passes through the function (typically two), regardless of the number of function inputs and outputs. We demonstrate the efficacy of our approach through several numerical experiments, comparing it with alternative derivative computation methods on benchmark functions. We show that our method significantly improves the performance of derivative computation on small to medium-sized functions, i.e., functions with approximately fewer than 500 combined inputs and outputs. Furthermore, we show that this method can be effectively applied in a robotics optimization context. We conclude with a discussion of the limitations and implications of our work

Motivation

Mathematical derivatives are fundamental to much of science. At a high level, derivatives offer a local characterization of a function's steepest ascent or descent directions. In practice, this property is frequently employed in numerical optimization, where derivatives guide the iterative process of navigating downhill through the landscape of a function

In this work, we recognize that derivatives are often not computed in isolation; conversely, it is quite common to calculate a sequence of derivatives, each one building on the last. For example, in optimization, function inputs typically change only slightly between iterations as small steps are taken downhill, with each input incrementally leading to the next.

The key insight of this work is that derivative computation can be accelerated by reusing information from previous, related calculations—a strategy known as coherence.

Goal: compute sequence of approximate derivatives of computable function as quickly and accurately as possible
Inputs: a computable function $f: \mathbb{R}^n \to \mathbb{R}^m$, and sequence of inputs, $\mathbf{x}_k, \mathbf{x}_{k+1}, \mathbf{x}_{k+2}, \cdots$
Outputs: a sequence of approximate derivatives at given inputs, $\hat{\frac{\partial f}{\partial \mathbf{x}}}|_{\mathbf{x}_{k}}, \hat{\frac{\partial f}{\partial \mathbf{x}}}|_{\mathbf{x}_{k+1}},\hat{\frac{\partial f}{\partial \mathbf{x}}}|_{\mathbf{x}_{k+2}} \cdots$

Method Overview

First, let's think of a derivative as a map from a matrix of tangents $\Delta \mathbf{X}$ to a matrix of Jacobian-vector product $\Delta \mathbf{F}$:

$\frac{\partial f}{\partial \mathbf{x}}|_{\mathbf{x}_{k}} \Delta \mathbf{X}=\Delta \mathbf{F}$
Each column of $\Delta \mathbf{X}$ and $\Delta \mathbf{F}$ is independent. $\frac{\partial f}{\partial \mathbf{x}}|_{\mathbf{x}_{k}} [\Delta \mathbf{x}_1 | \Delta \mathbf{x}_2|...|\Delta \mathbf{x}_r]=[\Delta \mathbf{f}_1 | \Delta \mathbf{f}_2|...|\Delta \mathbf{f}_r]$
Given $\Delta \mathbf{X}$ and $\Delta \mathbf{F}$ matrices of sufficient rank and size, we can directly solve the derivative $(\frac{\partial f}{\partial \mathbf{x}}|_{\mathbf{x}_{k}})^{\top}=(\Delta \mathbf{X}^\top)^\dagger\Delta \mathbf{F}^{\top}$

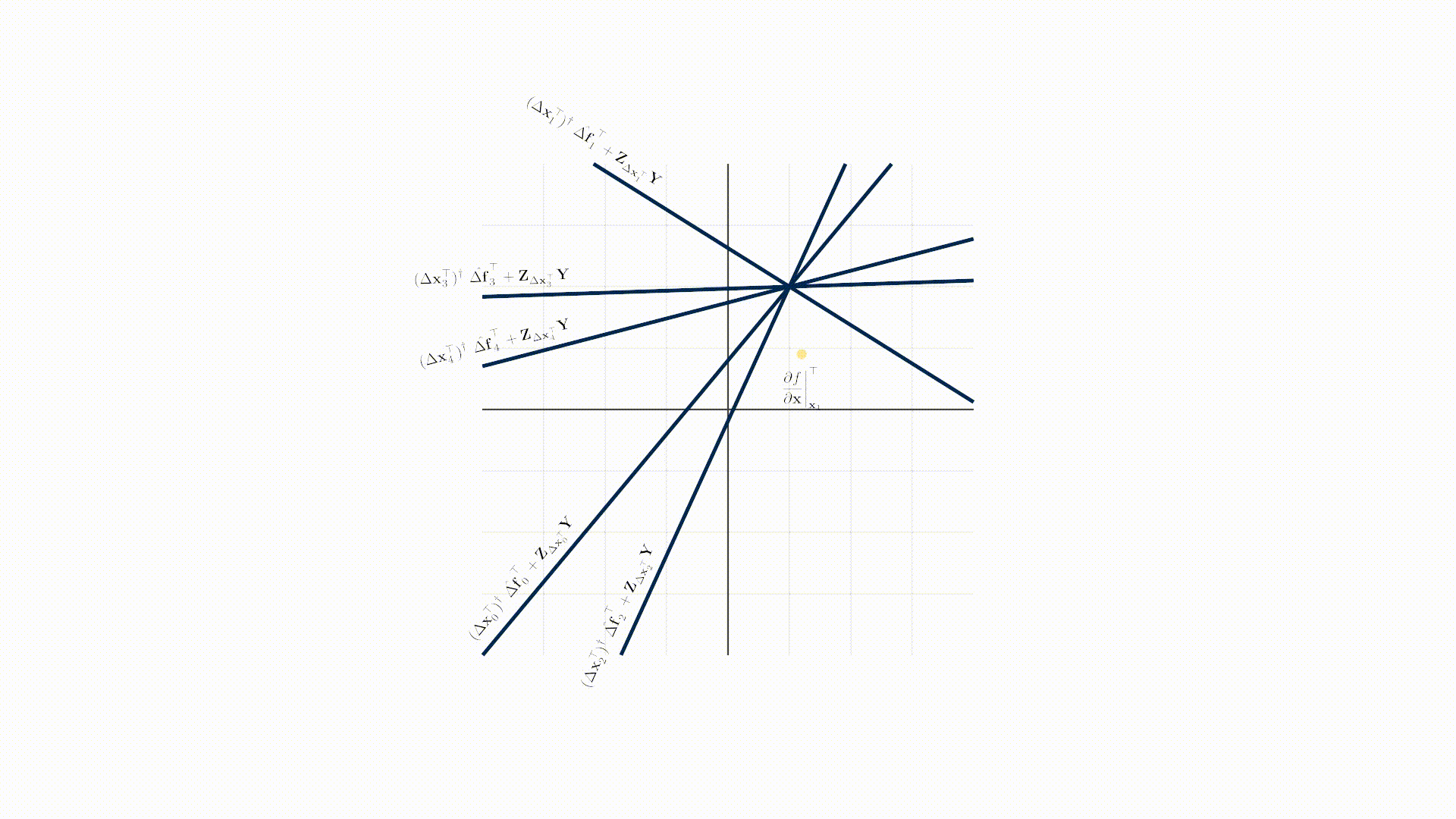

This solution is visualized below, where

Dark blue lines represent the affine spaces created from the corresponding columns of $ \Delta \mathbf{X} $ and $ \Delta \mathbf{F} $.
The $\mathbf{Z}$ matrices are null space basis matrices corresponding to tangent directions in $ \Delta \mathbf{X} $, and $\mathbf{Y}$ matrices represent free variables that parameterize the affine spaces.
The derivative must reside at the intersection of these affine spaces, as illustrated by the yellow dot.

Step 1

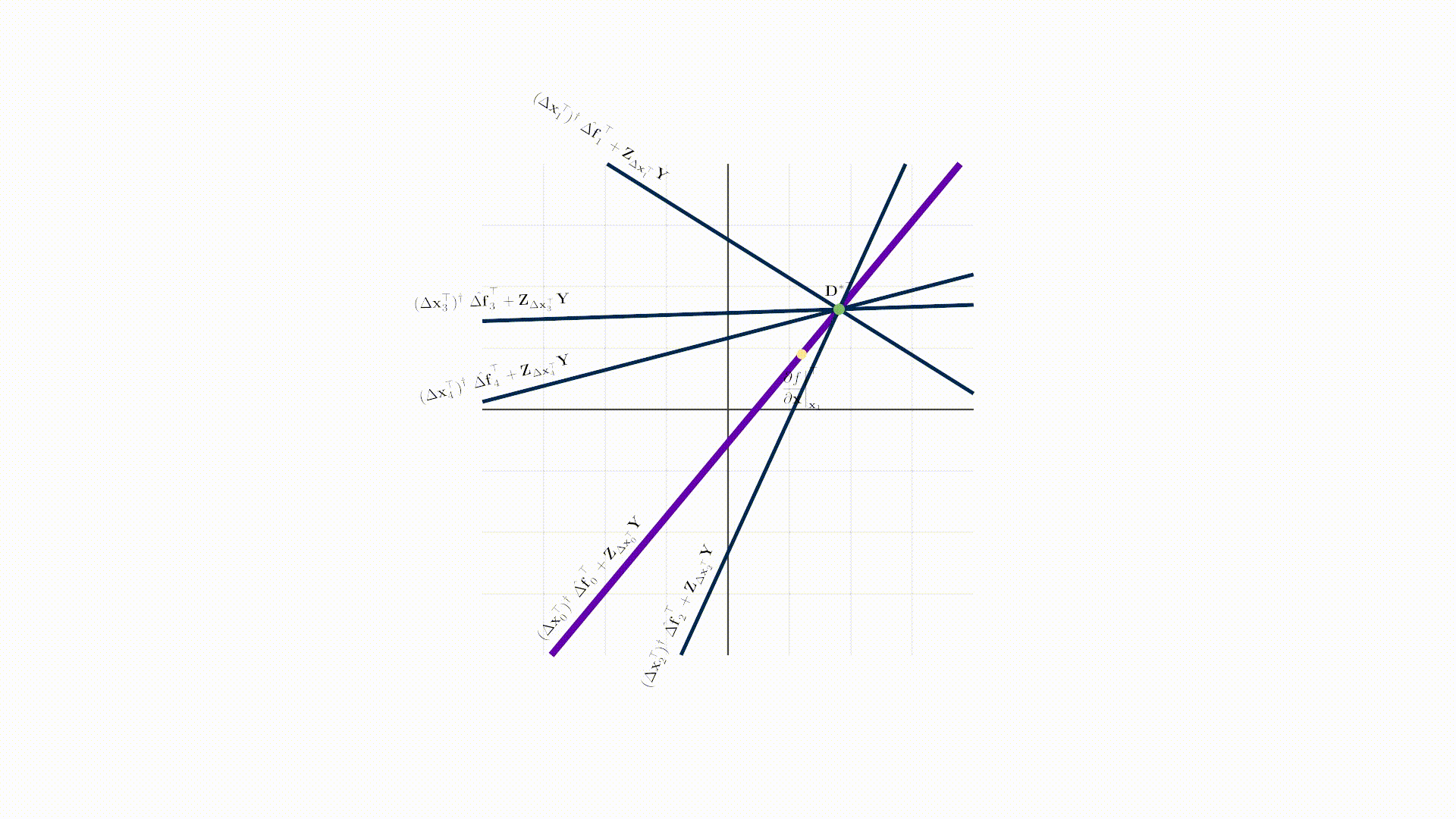

Suppose we are given a new input, $\mathbf{x}_1$, and our goal is to approximate a new derivative matrix $\frac{\partial f}{\partial \mathbf{x}}|_{\mathbf{x}_{1}}$. The groud truth derivative is represented by the shifted yellow dot.

Step 2

Instead of updating all the affine spaces by computing the Jacobian-vector product for each column in $ \Delta \mathbf{X} $, which incurs many function calls to $ f $ and can be quite computationally expensive, we only select one associated affine space, as illustrated by the purple line:

and update this space using a single ground-truth Jacobian-vector product, while leaving the other affine spaces intersecting at the previous derivative solution. The true derivative (yellow dot) is guaranteed to lie somewhere in the updated affine space (purple line):

Step 3

Here comes our key insight: we can formulate the derivative approximation problem as a constrained least-square optimization. The optimization is tasked with finding an approximate derivative that lies on the updated affine space (specified by a hard constraint) while best aligning with the previous, related affine spaces (specified in the objective function).

$$ \begin{gathered} \frac{\partial f}{\partial \mathbf{x}}\bigg|_{\mathbf{x}_k}^\top \approx \text{argmin}_{\mathbf{D}^\top}||\Delta\mathbf{X}^\top \mathbf{D}^\top - \hat{\Delta\mathbf{F}}^\top||^2_F, \\ s.t. \ \ \Delta \mathbf{x}_i^\top \mathbf{D}^\top = \Delta\mathbf{ \mathbf{f}}_i^\top. \end{gathered} $$

Here, the columns in $\hat{\Delta \mathbf{F}}$ contain the prior, un-updated Jacobian-vector products, while $\Delta \mathbf{f}_i$ in the constraint corresponds to the just computed Jacobian-vector products.

Solving this optimization problem means finding the point on the updated affine space (purple line) that minimizes the Euclidean distances to other unupdated affine spaces. The result $\mathbf{D}$ satisfies the following properties:

it lies on the updated affine space
it is closest (in terms of Euclidean distance) to the prior affine spaces

In our paper, we derive the closed form solution (green dot) of this optimization using its KKT system:

$$ \begin{gathered} \mathbf{D}^{* \top} = \mathbf{A}^{-1}(\mathbf{I}_{n \times n} - s_i^{-1}\Delta\mathbf{x}_i \Delta \mathbf{x}_i^\top \mathbf{A}^{-1})2\Delta\mathbf{X} \hat{\Delta\mathbf{F}}^\top + \\ s_i^{-1}\mathbf{A}^{-1}\Delta \mathbf{x}_i\Delta \mathbf{f}_i^\top. \\ \mathbf{A} = 2\Delta\mathbf{X} \Delta\mathbf{X}^\top, \ s_i = \Delta \mathbf{x}_i^{\top}\mathbf{A}^{-1}\Delta \mathbf{x}_i. \end{gathered} $$

Step 4

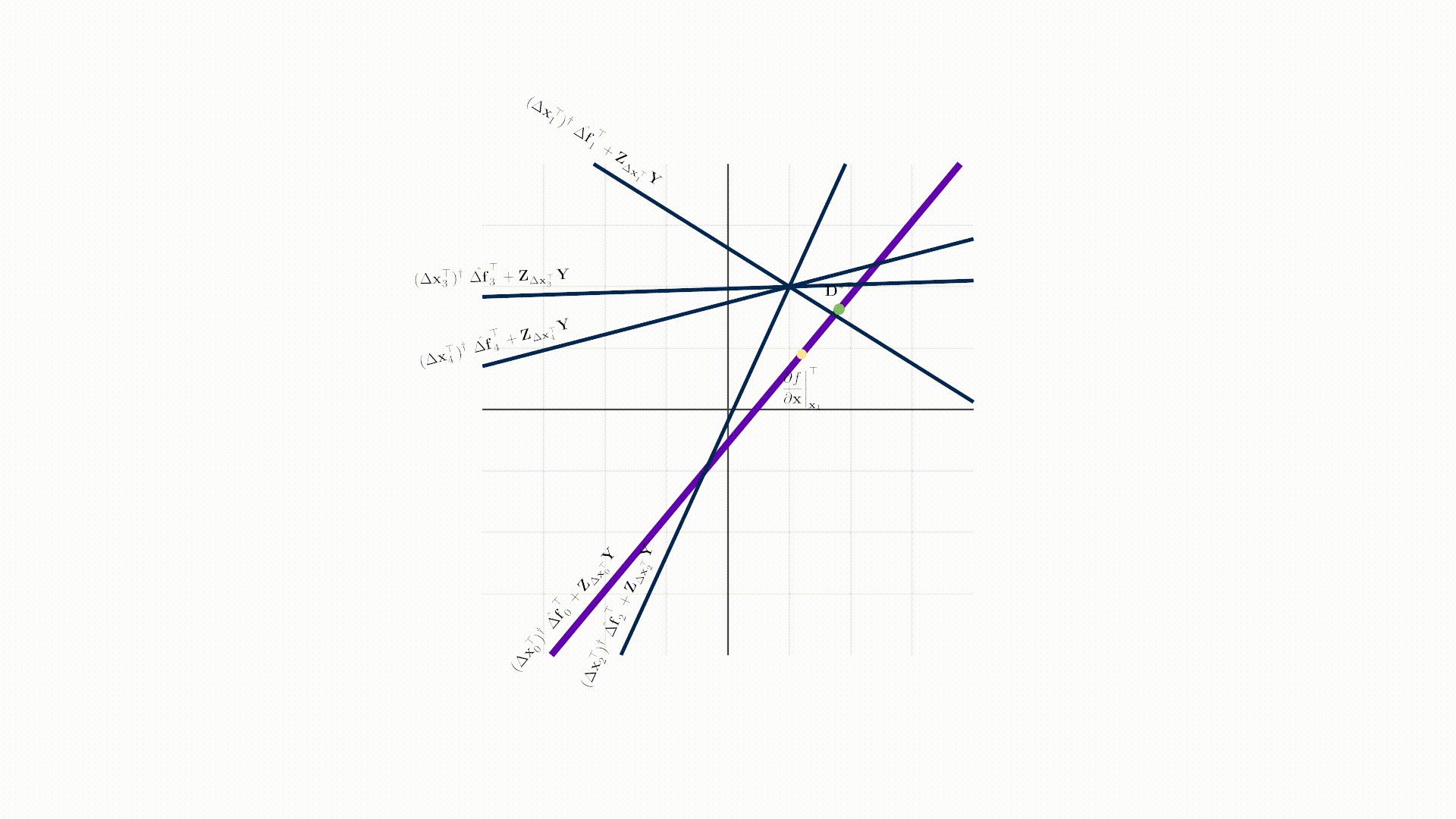

The just computed solution $\mathbf{D}^{* \top}$ is then used to update the other affine spaces such that they all now intersect at the new approximate derivative:

$$ \hat{\Delta \mathbf{F}} = \mathbf{D}^* \Delta \mathbf{X} $$

Step 5

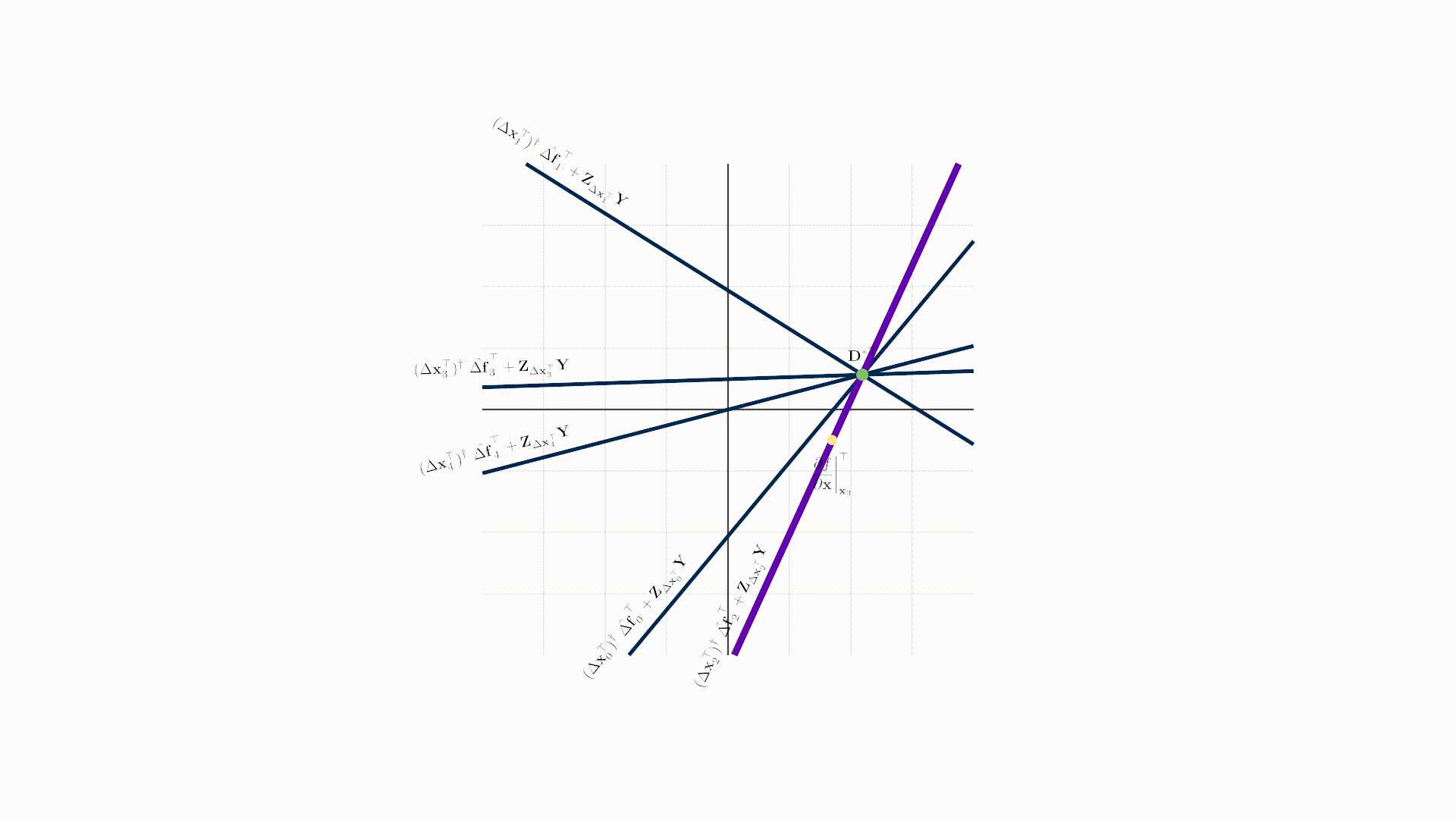

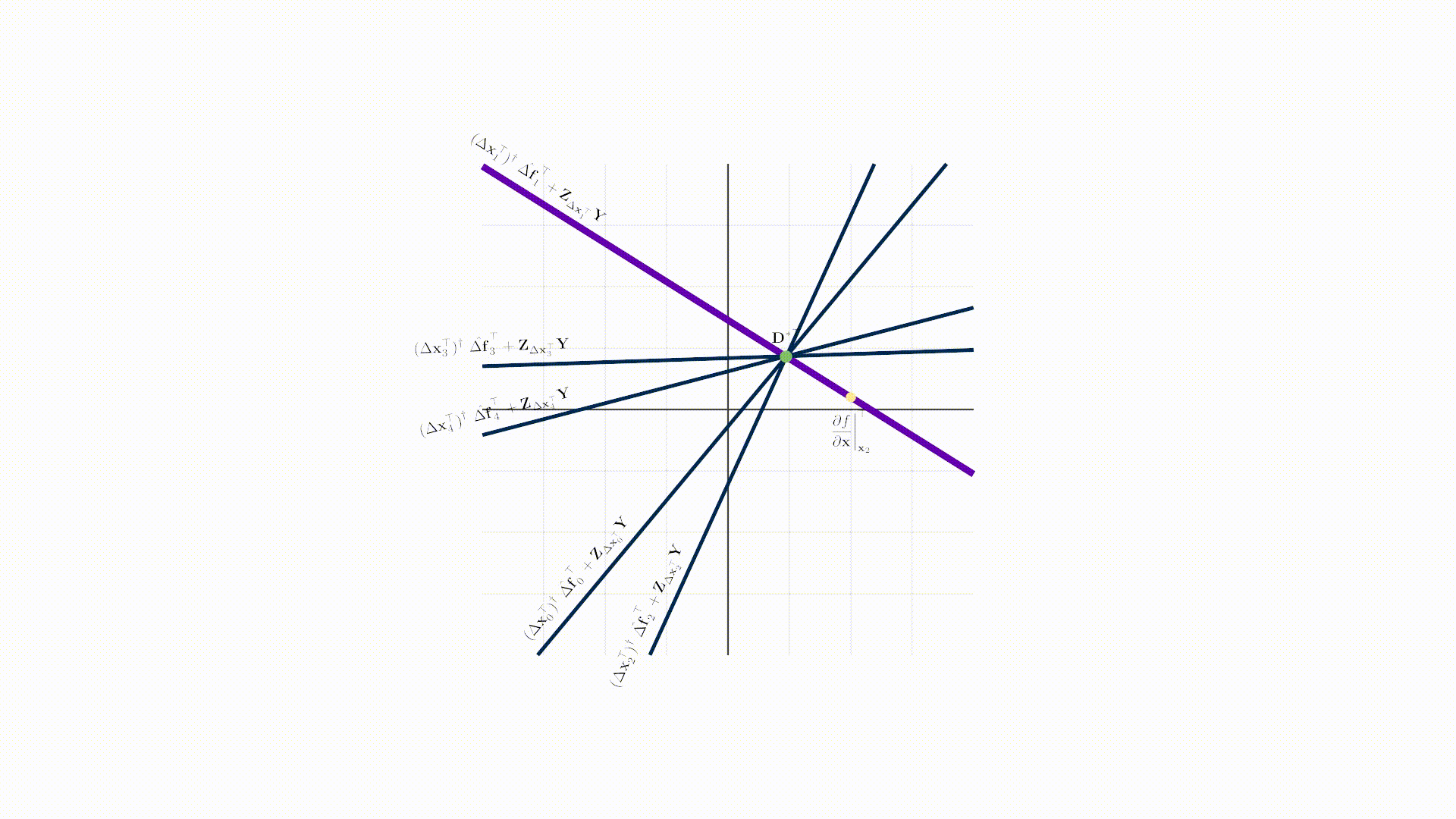

The process iterates, cycling through the web of affine spaces, interleaving updates to the approximates of derivative and $\hat{\Delta \mathbf{F}}$ for each new input in the sequence.

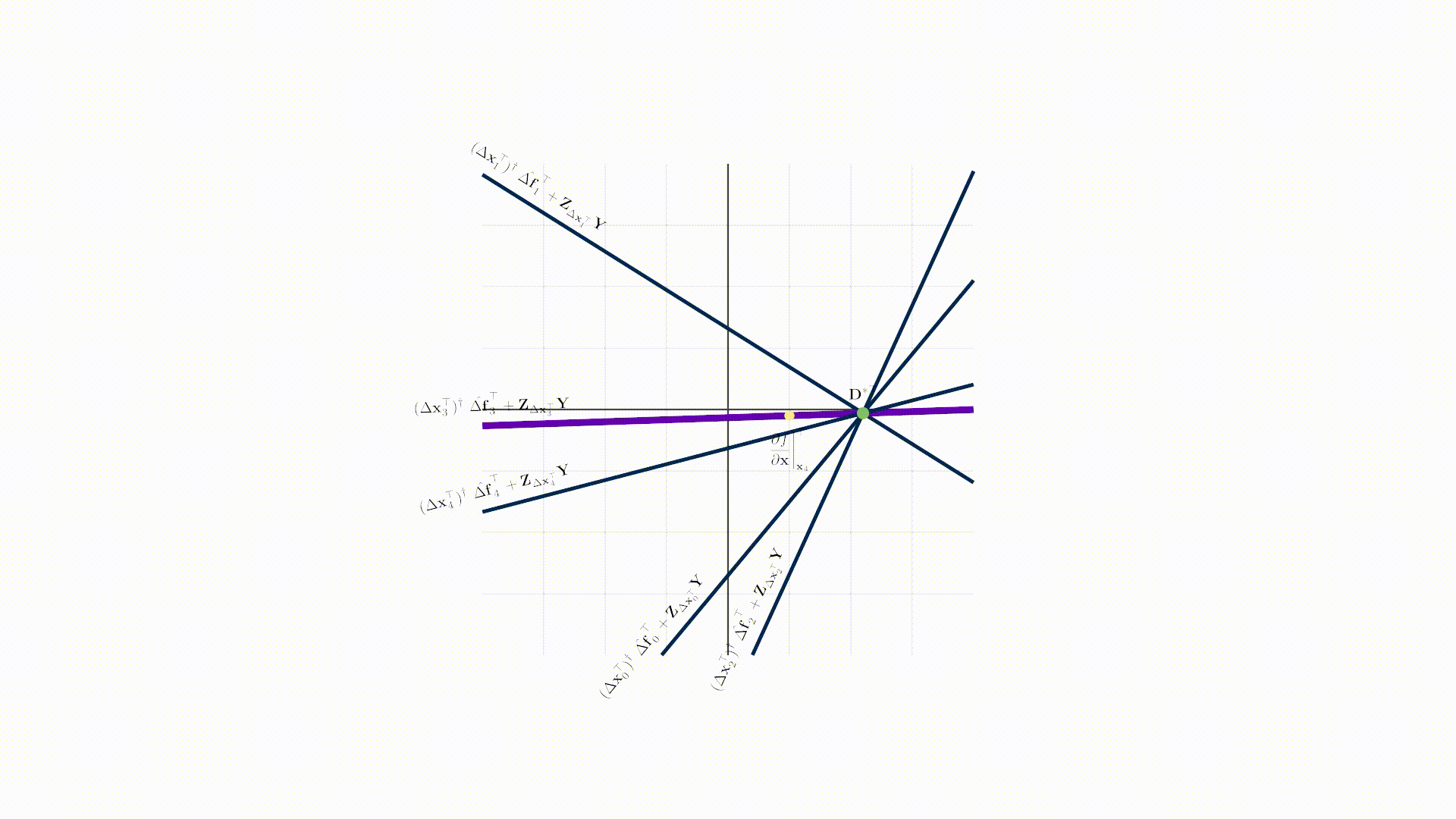

Our approach is also equipped with a error detection and correction mechanism. If it is detected that the approximate solution (green dot) must be too far away from the ground truth (yellow dot), it can spend additional iterations on the current input until a given accuracy is achieved. If all affine spaces are updated with ground truth Jacobian-vector products, the solution will always match the ground truth.

Results

Evaluation 1

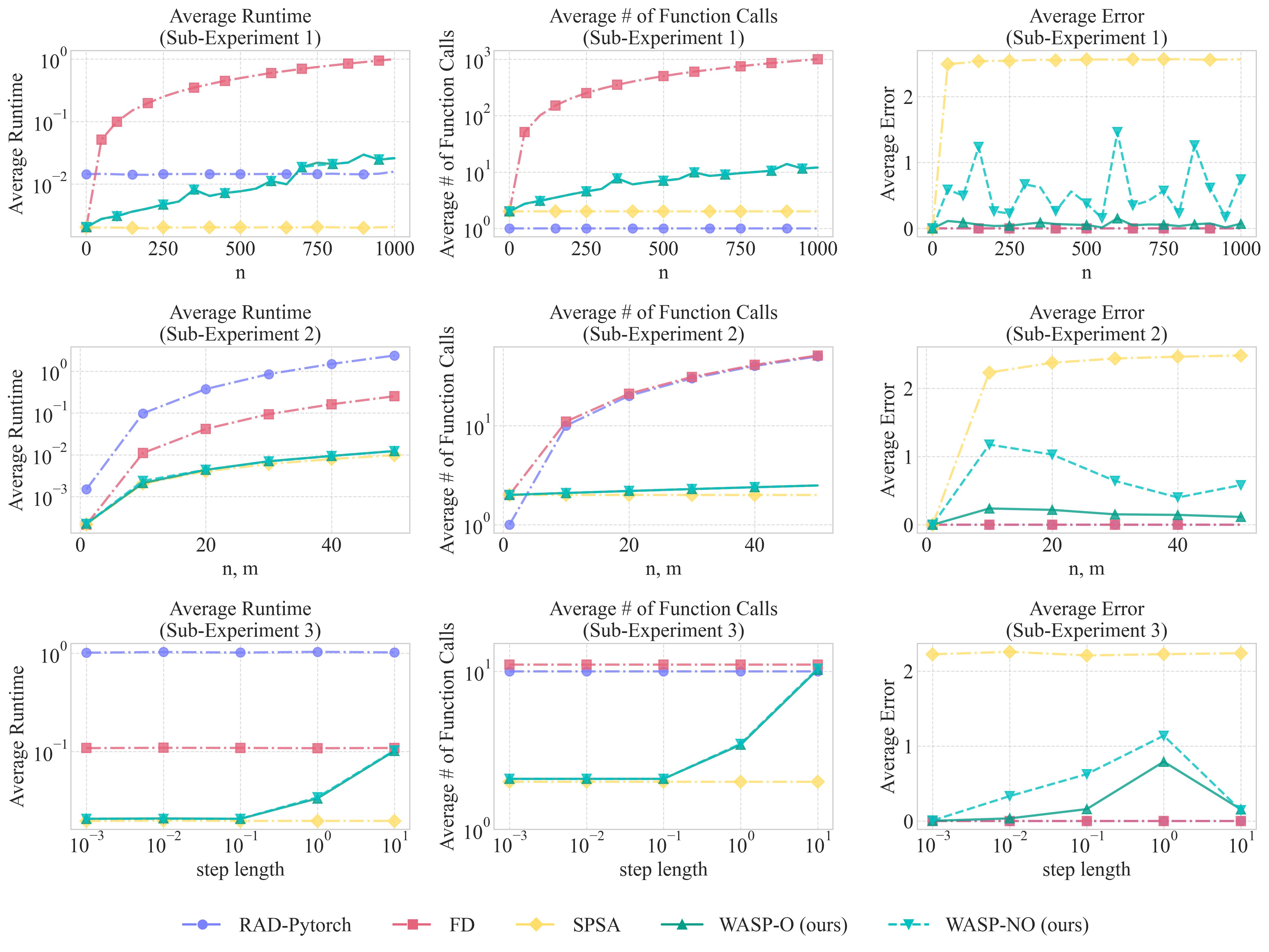

Evaluation 1 compares our WASP method against four other derivative computation methods. The conditions are:

Reverse-mode automatic differentiation with PyTorch backend (abbreviated as RAD-PyTorch)
Finite-differencing with NumPy backend (abbreviated as FD)
Simultaneous Perturbation Stochastic Approximation with NumPy backend (abbreviated as SPSA)
Web of Affine Spaces Optimization with orthonormal $\Delta \mathbf{X}$ matrix and NumPy backend (abbreviated as WASP-O).
Web of Affine Spaces Optimization with random, non-orthonormal $\Delta \mathbf{X}$ matrix and NumPy backend (abbreviated as WASP-NO).

Through evaluating these conditions on computing derivatives of nested sine-cosine functions that resemble forward kinematic functions in robotics, we show that our methods offer significant speed-up while at the same time maintains reasonable accuracy.

For readers interested in further insights, supplementary results are provided in the Appendix (§X-C) in the paper. Conditions in this supplemental section include JAX implementations compiled for both CPU and GPU, as well as Rust-based implementations, allowing modifications, optimizations, and compilations to strive for maximum possible performance for each condition.

Evaluation 3

Evaluation 3 involves using a root-finding procedure to get a quadruped robot to match its feet and end-effector to specified poses. Our WASP conditions converge much more quickly than the alternative approaches. As the analysis in our paper would suggest, the WASP procedure with an orthonormal $\Delta \mathbf{X}$ basis converges even faster and more stably.

Code Snippets

Here, we provide sample implementations of WASP in different programming languages.


"""
  Minimal demonstration of the WASP algorithm using a
  NumPy backend.

  The routine can also be executed on alternative array libraries (e.g.,
  PyTorch, JAX) through TensorLy's backend abstraction.

  For the full reference implementation, see
  https://github.com/Apollo-Lab-Yale/apollo-py/blob/main/apollo_toolbox_py/apollo_py/
  apollo_py_differentiation/apollo_py_differentiation_tensorly/derivative_method_tensorly.py
  """

  from typing import Callable
  import numpy as np

  class DerivativeMethodWASP:
      def __init__(self, n: int, m: int, orthonormal: bool = True, d_ell=0.3, d_theta=0.3):
          """
          Parameters
          ----------
          n : int
              Input dimensionality of the target function *f*.
          m : int
              Output dimensionality of *f*.
          orthonormal : bool, optional
              If ``True`` (recommended), the finite-difference perturbations Δx are kept
              orthonormal. Set to ``False`` only for benchmarking or ablation studies.
          d_ell : float, optional
              Length-norm threshold used in the WASP error test (default = 0.3).
          d_theta : float, optional
              Angular threshold (radians) used in the WASP error test (default = 0.3).
          """

          self.n = n
          self.m = m
          self.orthonormal = orthonormal
          self.cache = WASPCache(n, m, orthonormal)
          self.num_f_calls = 0
          self.d_theta = d_theta
          self.d_ell = d_ell
          self.fixed_i = None

      def clear_cache(self):
          self.cache.i = 0
          self.cache.delta_f_t = np.eye(self.n, self.m)

      def derivative_raw(self, f:Callable[[np.ndarray], np.ndarray], x: np.ndarray) -> np.ndarray:
          """
          Compute the raw Jacobian of *f* at *x* via the WASP scheme.

          Parameters
          ----------
          f : Callable[[numpy.ndarray], numpy.ndarray]
              The vector-valued function whose derivative is sought.
          x : numpy.ndarray
              Evaluation point, shape ``(n,)``.

          Returns
          -------
          numpy.ndarray
              The Jacobian matrix ``df/dx`` at *x*, shape ``(m, n)``.
          """

          self.num_f_calls = 0
          f_k = f(x)
          self.num_f_calls += 1
          epsilon = 0.00000001
          cache = self.cache

          while True:
              if self.fixed_i is None:
                  i = self.cache.i
              else:
                  i = self.fixed_i

              delta_x_i = cache.delta_x[:, i]
              x_k_plus_delta_x_i = x + epsilon * delta_x_i
              f_k_plus_delta_x_i = f(x_k_plus_delta_x_i)
              self.num_f_calls += 1

              delta_f_i = (f_k_plus_delta_x_i - f_k) / epsilon
              delta_f_i_hat = cache.delta_f_t[i, :]
              return_result = close_enough(delta_f_i, delta_f_i_hat, self.d_theta, self.d_ell)

              # Update delta_f_t with the new delta_f_i
              cache.delta_f_t[i, :] = delta_f_i

              # Get optimization matrices
              c_1_mat = cache.c_1[i]
              c_2_mat = cache.c_2[i]
              delta_f_t = cache.delta_f_t

              # Reshape for matrix multiplication
              delta_f_i = np.reshape(delta_f_i, (-1, 1))

              # Calculate the closed-form solution
              d_t_star = c_1_mat @ delta_f_t + c_2_mat @ delta_f_i.T
              d_star = d_t_star.T

              # Update delta_f_t for next iteration
              tmp = d_star @ cache.delta_x
              cache.delta_f_t = tmp.T

              # Update i for next iteration
              new_i = i + 1
              if new_i >= len(x):
                  new_i = 0
              cache.i = new_i

              # Return if accurate enough or all directions checked
              if return_result or self.num_f_calls == len(x) + 1:
                  return d_star

  class WASPCache:
      def __init__(self, n: int, m: int, orthonormal_delta_x: bool = True):
          self.i = 0
          self.delta_f_t = np.eye(n, m)
          delta_x = get_tangent_matrix(n, orthonormal_delta_x)
          self.c_1 = []
          self.c_2 = []

          # Calculate A and its inverse
          a_mat = 2.0 * delta_x @ delta_x.T
          a_inv_mat = np.linalg.inv(a_mat)
          eye = np.eye(n, n)

          # Precompute c_1 and c_2 matrices for each dimension
          for i in range(n):
              delta_x_i = delta_x[:, i:i + 1]
              s_i = delta_x_i.T @ a_inv_mat @ delta_x_i
              s_i_inv = 1.0 / s_i

              # Term 1 of the closed-form solution
              c_1_mat = a_inv_mat @ (eye - s_i_inv * delta_x_i @ delta_x_i.T @ a_inv_mat) @ (2.0 * delta_x)

              # Term 2 of the closed-form solution
              c_2_mat = s_i_inv * a_inv_mat @ delta_x_i

              self.c_1.append(c_1_mat)
              self.c_2.append(c_2_mat)

          self.delta_x = delta_x

  def get_tangent_matrix(n: int, orthonormal: bool) -> np.ndarray:
      t = np.random.uniform(-1, 1, (n, n))
      if orthonormal:
          U, S, VT = np.linalg.svd(t, full_matrices=True)
          delta_x = U @ VT
          return delta_x
      else:
          return t

  def close_enough(a: np.ndarray, b: np.ndarray, d_theta: float, d_ell: float):
      a_n = np.linalg.norm(a)
      b_n = np.linalg.norm(b)

      if a_n == 0.0 or b_n == 0.0:
          return False

      tmp = np.abs((np.dot(a, b) / (a_n * b_n)) - 1.0)
      if tmp > d_theta:
          return False

      if not b_n == 0.0:
          tmp1 = np.abs((a_n / b_n) - 1.0)
      else:
          tmp1 = 10000000.0
      if not a_n == 0.0:
          tmp2 = np.abs((b_n / a_n) - 1.0)
      else:
          tmp2 = 10000000.0

      if min(tmp1, tmp2) > d_ell:
          return False

      return True


/*!
  Minimal working example of the **WASP** algorithm in Rust, powered by *nalgebra*.

  For the full reference implementation see


  Add the following to your `Cargo.toml`:

  ```toml
  [dependencies]
  nalgebra = { version = "0.33.0", features = ["rand"] }
  rand     = "0.9.0-alpha.1"
  */

  use std::sync::{Arc, RwLock};
  use nalgebra::{DMatrix, DVector};
  use rand::Rng;

  pub type V = DVector;
  pub type M = DMatrix;

  fn get_column(mat: &M, i: usize) -> V {
      V::from_column_slice(mat.column(i).as_slice())
  }

  fn get_row(mat: &M, i: usize) -> V {
      V::from_row_slice(mat.row(i).transpose().as_slice())
  }

  pub struct DerivativeMethodWASP {
      cache: RwLock,
      num_f_calls: RwLock,
      d_theta: f64,
      d_ell: f64
  }

  impl DerivativeMethodWASP {
      /// Create a new `DerivativeMethodWASP`.
      ///
      /// # Parameters
      /// * **`n`** – Input dimensionality.
      /// * **`m`** – Output dimensionality.
      /// * **`orthonormal_delta_x`** – Keep the finite-difference steps Δx orthonormal
      ///   (`true`, recommended) or relax this constraint for benchmarking (`false`).
      /// * **`d_theta`** – Angular error threshold (radians) for the WASP error test.
      /// * **`d_ell`** – Length-norm error threshold for the WASP error test.
      pub fn new(n: usize, m: usize, orthonormal_delta_x: bool, d_theta: f64, d_ell: f64) -> Self {
          Self {
              cache: RwLock::new(WASPCache::new(n, m, orthonormal_delta_x)),
              num_f_calls: RwLock::new(0),
              d_theta,
              d_ell,
          }
      }

      pub fn new_default(n: usize, m: usize) -> Self {
          Self::new(n, m, true, 0.3, 0.3)
      }

      pub fn num_f_calls(&self) -> usize {
          return self.num_f_calls.read().unwrap().clone()
      }

      /// Compute `f(x)` and its Jacobian at `x` using the WASP scheme.
      ///
      /// # Parameters
      /// * **`f`** – Thread-safe callable (`Arc V>`) to differentiate.
      /// * **`x`** – Point of evaluation.
      ///
      /// # Returns
      /// `(value, jacobian)` where `value = f(x)` and `jacobian = ∂f/∂x`.
      fn derivative(&self, f: &Arc V>, x: &V) -> (V, M) {
          let mut num_f_calls = 0;
          let f_k = f(x);
          num_f_calls += 1;
          let epsilon = 0.000001;
          let mut cache = self.cache.write().unwrap();
          let n = x.len();

          loop {
              let i = cache.i.clone();
              let delta_x_i = get_column(&cache.delta_x, i);
              let x_k_plus_delta_x_i = x + epsilon*&delta_x_i;
              let f_k_plus_delta_x_i = f(&x_k_plus_delta_x_i);
              num_f_calls += 1;
              let delta_f_i = (&f_k_plus_delta_x_i - &f_k) / epsilon;
              let delta_f_i_hat = get_row(&cache.delta_f_t,i);
              let return_result = close_enough(&delta_f_i, &delta_f_i_hat, self.d_theta, self.d_ell);

              cache.delta_f_t.set_row(i, &delta_f_i.transpose());
              let c_1_mat = &cache.c_1[i];
              let c_2_mat = &cache.c_2[i];
              let delta_f_t = &cache.delta_f_t;
              let d_t_star = c_1_mat*delta_f_t + c_2_mat*delta_f_i.transpose();
              let d_star = d_t_star.transpose();
              let tmp = &d_star * &cache.delta_x;
              cache.delta_f_t = tmp.transpose();

              let mut new_i = i + 1;
              if new_i >= n { new_i = 0; }
              cache.i = new_i;

              if return_result {
                  *self.num_f_calls.write().unwrap() = num_f_calls;
                  return (f_k, d_star);
              }
          }
      }
  }


  #[derive(Clone, Debug)]
  pub struct WASPCache {
      pub i: usize,
      pub delta_f_t: M,
      pub delta_x: M,
      pub c_1: Vec,
      pub c_2: Vec
  }

  impl WASPCache {
      pub fn new(n: usize, m: usize, orthonormal_delta_x: bool) -> Self {
          let delta_f_t = M::identity(n, m);
          let delta_x = get_tangent_matrix(n, orthonormal_delta_x);
          let mut c_1 = vec![];
          let mut c_2 = vec![];

          let a_mat = 2.0 * &delta_x * &delta_x.transpose();
          let a_inv_mat = a_mat.try_inverse().unwrap();

          for i in 0..n {
              let delta_x_i = V::from_column_slice(delta_x.column(i).as_slice());
              let s_i = (delta_x_i.transpose() * &a_inv_mat * &delta_x_i)[(0,0)];
              let s_i_inv = 1.0 / s_i;
              let c_1_mat = &a_inv_mat * (M::identity(n, n) - s_i_inv * &delta_x_i
                  * delta_x_i.transpose() * &a_inv_mat) * 2.0 * &delta_x;
              let c_2_mat = s_i_inv * &a_inv_mat * delta_x_i;
              c_1.push(c_1_mat);
              c_2.push(c_2_mat);
          }

          return Self {
              i: 0,
              delta_f_t,
              delta_x,
              c_1,
              c_2,
          }
      }
  }

  fn new_random_with_range(nrows: usize, ncols: usize, min: f64, max: f64) -> M {
      let mut rng = rand::rng();
      let mut m = DMatrix::zeros(nrows, ncols);

      for i in 0..nrows {
          for j in 0..ncols {
              m[(i, j)] = rng.random_range(min..=max);
          }
      }

      m
  }

  pub fn get_tangent_matrix(n: usize, orthonormal: bool) -> M {
      let t = new_random_with_range(n, n, -1.0, 1.0);
      return if orthonormal {
          let svd = t.svd(true, true);
          let u = svd.u.unwrap();
          let v_t = svd.v_t.unwrap();
          let delta_x = u * v_t;
          delta_x
      } else {
          t
      }
  }

  pub fn close_enough(a: &V, b: &V, d_theta: f64, d_ell: f64) -> bool {
      let a_n = a.norm();
      let b_n = b.norm();

      let tmp = ((a.dot(&b) / ( a_n*b_n )) - 1.0).abs();
      if tmp > d_theta { return false; }

      let tmp1 = if b_n != 0.0 {
          ((a_n / b_n) - 1.0).abs()
      } else {
          f64::MAX
      };
      let tmp2 = if a_n != 0.0 {
          ((b_n / a_n) - 1.0).abs()
      } else {
          f64::MAX
      };

      if f64::min(tmp1, tmp2) > d_ell { return false; }

      return true;
  }

Test Script

BibTeX


@misc{rakita2025coherencebasedapproximatederivativesweb,
      title={Coherence-based Approximate Derivatives via Web of Affine Spaces Optimization},
      author={Daniel Rakita and Chen Liang and Qian Wang},
      year={2025},
      eprint={2504.18790},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2504.18790},
}
